engraving machine for glass

  • engraving machine for glass
  • engraving machine for glass
  • engraving machine for glass

engraving machine for glass

    Payment Type: T/T,D/P,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 7 Days
    Packaging: Wood package
    Productivity: 1000 Set/Sets Per Month
    Brand: MEIMAN
    Transportation: Ocean,Land,Air,ROAD/TRAIN
    Place of Origin: JINAN,SHANDONG
    Supply Ability: Large
    Certificate: CCC,CE,GS,ISO,SGS,UL
    HS Code: 8456110090
    Port: QINGDAO

Basic Info

Model No.: FM-E

Product Description

Engraving Laser Machine Introduce

The engraving laser machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood , bamboo , plexiglass , crystal , leather , rubber, marble , ceramics and glass and etc . The engraving laser machine has interlocking door with auto-shutdown protection device. Graphic Format Supported dst , plt , bmp , dxf , dwg , ai , las , etc

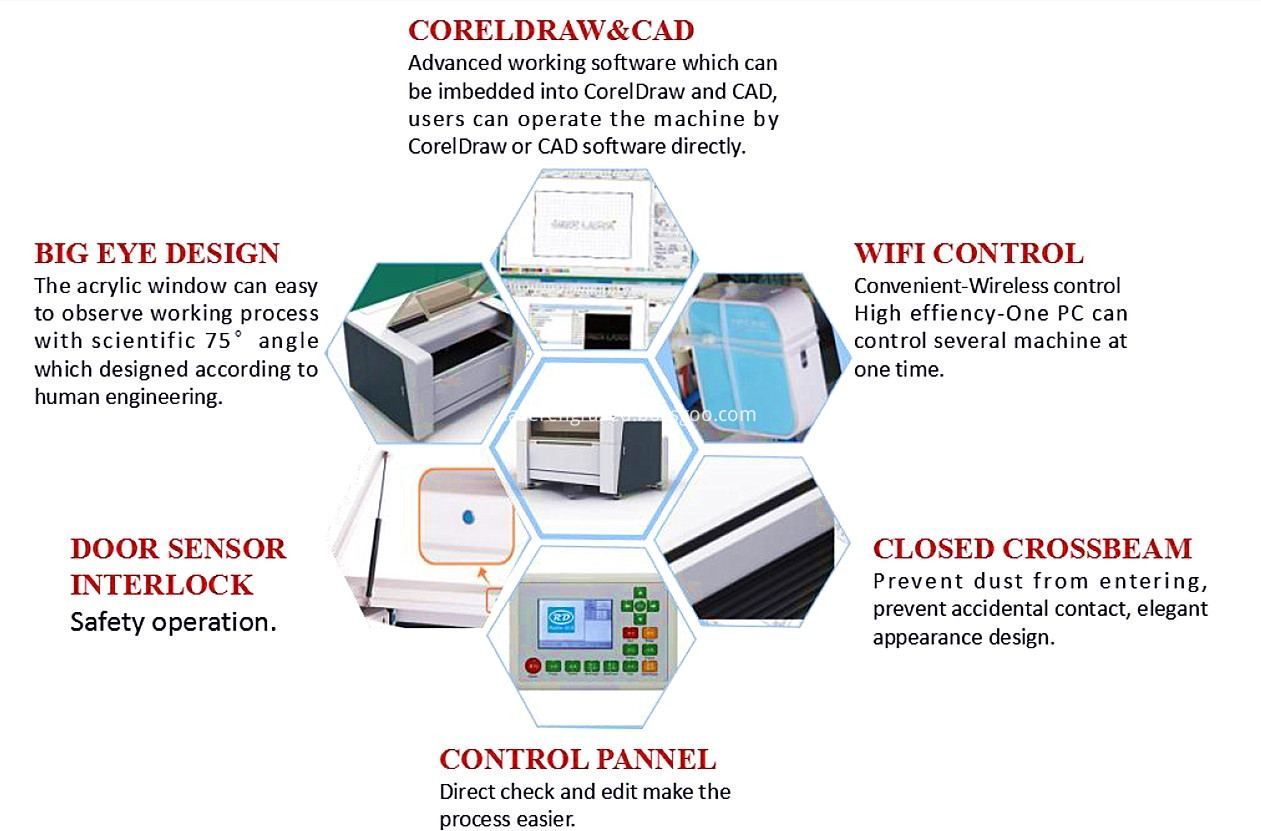

Product pictures

engraving laser cutter1fm2

Parameter

Model

FM-E1309

Colour

Black and white,etc

Working Area

1300*900mm

Laser Power

80W/100W/120W/150W/180W

Laser Type

CO2 Sealed Laser Tube,10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-20000mm/min

Laser Output Control

0-100% Set by Software

Min.Engraving Size

Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm

Highest Scanning Precision

2500DPI

Locating Accuracy

≤+0.01mm

Controlling Software

DSP Control System

Drive System

High-precision Stepper Motor

Worktable

honeycomb table

Power Supply

AC110V/220V±10%50HZ/60HZ

Working Environment

Temperature:0-45C,Humidity5-95%(No Condensate Water)


b86f4111968b6bd746e6d3e5e2


Application

Material

Cut

Engrave

Acrylic, Plexiglass, PMMA, Perspex,Organic Board, Double Color Plate

Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, Polyester or Polyimide Membrane Keyboards

Wood, Bamboo, Veneer, MDF, Blasa Wood, Plywood

Leather, Pig Leather, Cow Leather, Sheep Leather

Textile, Cotton, Silk, Felt, Lace, Synthetic&Technical Textiles, Aramid, Polyester, Fleece

×

Foam&Filter, Mats Polyester(PES), Polyethylene(PE), Polyurethane(PUR)

×

×

Neopren

×

×

Paper, Cardboard, Chipboard, Press Board

Stone, Ceramic, Granite, Marble, Natural Stone, Pebble Stone, Slate

×

Rubber Stamps, Synthetic&Silicone Rubber, Natural Rubber, Microporous Foam

Silicone Rubber, Synthetic Rubber

Glass, Pressed Glass, Float Glass, Crystal Glass, Mirror Glass

×


FAQ

1. What's your after-sales service?

  • 24/7 support by phone or chat online.
  • Lifelong and free technical support.
  • Overseas service: If you need to solve the problem face to face, we will send engineers to your home. During the warranty period, we are responsible for warranty costs. Beyond the warranty period, you will bear all costs.


2. What's your guarantee?

  • Laser tube is 100% genuine and certificate is with it.
  • Machine is verified and inspection and adjustments is completed as well as verified in writing.
  • Testing is done and results is verified in writing.
  • The complete machine warranty for two years (laser tuber warranty for one year, Reci laser tube warranty is ten months).


3.What's your Payment Terms Supported?

  • By 100% T/T in advance.
  • By 30% T/T in advance, 70% balance paid before shipment.
  • By D/P, Money Gram,Western Union.



Shandong Meiman Laser Technology Co., Ltd.



Shandong Meiman Laser Technology Co., Ltd. headquartered in JINAN, devoted to researching and developing the motion control, machine vision, laser marking & cutting and automatic core parts independently. Based on many years industry application experience and expert-level core R&D team, Meiman Laser aims to provide cost-effective automatic control products and services from simple application to complexity to customers. On the basis of independent innovation, Meiman Laser Technology cooperates closely with domestic universities and research institutions, introducing foreign advanced motion control technology and continuously developing high cost performance new products to adapt to the market demand.

Meiman Laser has motion control, machine vision, and automation product lines, products mainly including low/medium power cutting system, visual positioning & identification cutting system, marking system, high power laser cutting system and automation control, etc.

Meiman Laser control products are popular all over the country and kept its leading position in low/medium power laser processing, and exported to overseas market. Based on laser processing field, Meiman Laser gradually expands to automation control field, in order to provide the complete industry solutions for equipment manufacturers.

"Seek Development, Create Wealth" is our motivation, and "Sincerity-based, Serving customer" is our bounden duty. With "honest, pragmatic, cooperative and enterprising" enterprise spirit, Meiman Laser will constantly develop much better system solutions, and investing more product developments and services to ensure customers leading position in the market.


"World laser technology for better life" is the vision of Meiman laser.

"innovation, breakthroughs, efficiency and service-orientation" are the core concept in the development Meiman laser.

We are proficient in laser technology as well as in product design.

We offer our customers customized solutions and technical services.
